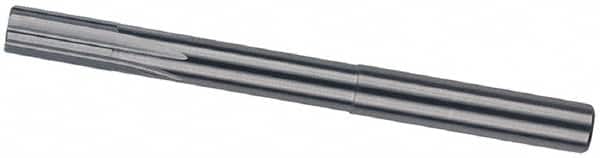

Kennametal - 13mm Carbide-Tipped 6 Flute Chucking Reamer - Straight Flute, 14mm Straight Shank, 28mm Flute Length, 132mm OAL
Item #: 76297373
Brand: Kennametal
Model #: 3668930
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous metals including cast iron, steel and steel alloy.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 13.00 |
| Reamer Diameter (Decimal Inch) | 0.5118 |
| Reamer Material | Carbide-Tipped |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (mm) | 132.00 |
| Overall Length (Decimal Inch) | 5.1969 |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 6 |
| Minimum Shank Diameter (Decimal Inch) | 0.5512 |
| Maximum Shank Diameter (mm) | 14.00 |
| Maximum Shank Diameter (Decimal Inch) | 0.5512 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | TiAlN |
