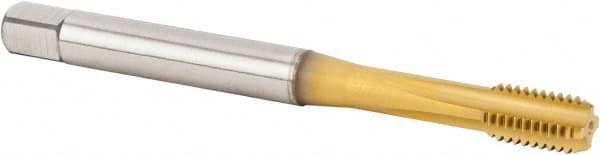

Kennametal - M12x1.75 Metric Coarse 6HX 4 Flute TiCN/TiN Finish Powdered Metal Straight Flute Machine Tap - Bottoming, Right Hand Thread, 110mm OAL, 18mm Thread Length, Oversize, Through Coolant
Item #: 76267988
Brand: Kennametal
Model #: 4156554
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Powdered metal cobalt high speed steel provides the highest performance of the powdered metals. It is used at extremely high temperatures and cutting speeds on highly abrasive materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M12x1.75 |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | Powdered Metal |
| Finish/Coating | TiCN/TiN |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 4.33070 |
| Overall Length (mm) | 110.00 |
| Oversize | No |
| Series/List | T643 |
| Thread Length (Decimal Inch) | 0.7087 |
| Thread Length (mm) | 18.00 |
| Neck Length (Inch) | 1-1/64 |
| Tapping Depth (mm) | 44 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.00 |
| Shank Length (Decimal Inch) | 2.80 |
| Shank Length (mm) | 71 |
| Square Size (Decimal Inch) | 0.2756 |
| Square Size (mm) | 7.00 |
| Material Application | Cast Iron; Non-Ferrous Materials |
