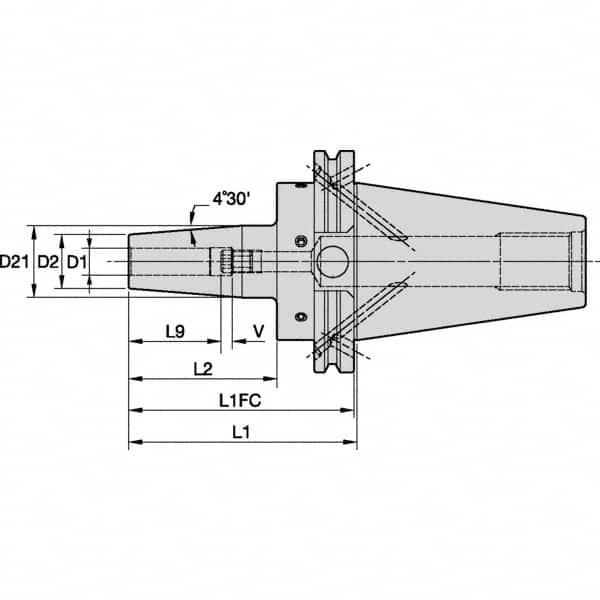

Kennametal - 10mm Hole Diam, CVKV50 Taper Shank Shrink Fit Tool Holder & Adapter - 95.3mm Projection, 24mm Nose Diam, 31mm Clamping Depth, 15,000 RPM, Through Coolant
Item #: 76235472
Brand: Kennametal
Model #: 3860149
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CVKV50 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Hole Diameter (mm) | 10.00 |
| Projection (mm) | 95.30 |
| Projection (Decimal Inch) | 3.7520 |
| Nose Diameter (mm) | 24.00 |
| Nose Diameter (Decimal Inch) | 0.9449 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 31.00 |
| Overall Length (mm) | 196.85 |
| Overall Length (Decimal Inch) | 7.7500 |
| Balanced to (RPM) | 15000 |
