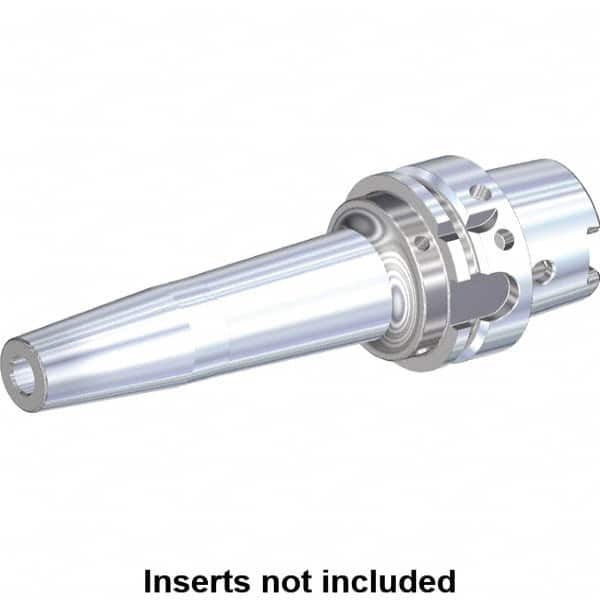

Kennametal - 5/16" Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 160.02mm Projection, 21.08mm Nose Diam, 1.02" Clamping Depth, 25,000 RPM, Through Coolant
Item #: 76234467
Brand: Kennametal
Model #: 3864082
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.3125 |
| Hole Diameter (mm) | 7.94 |
| Hole Diameter (Inch) | 5/16 |
| Projection (mm) | 160.02 |
| Projection (Decimal Inch) | 6.3000 |
| Nose Diameter (mm) | 21.08 |
| Nose Diameter (Decimal Inch) | 0.8300 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 1.0200 |
| Overall Length (mm) | 191.90 |
| Overall Length (Decimal Inch) | 7.5550 |
| Balanced to (RPM) | 25000 |
