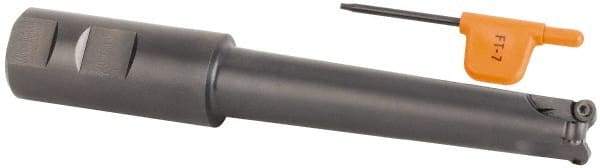

Kennametal - 3/4" Cutting Diam, 1" Shank Diam, 3/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RD.X 07.. Insert, KDM Toolholder, Through Coolant
Item #: 76192806
Brand: Kennametal
Model #: 2251718
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 3 |
| Insert Style | RD.X 07.. |
| Toolholder Style | KDM |
| Series | KDM |
| Overall Length (mm) | 159.51 |
| Overall Length (Decimal Inch) | 6.2800 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 12.04 |
| Head Length (mm) | 101.60 |
| Head Length (Inch) | 4 |
| Head Length (Decimal Inch) | 4.0000 |
| Shank Length (mm) | 57.91 |
| Shank Length (Decimal Inch) | 2.2800 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
