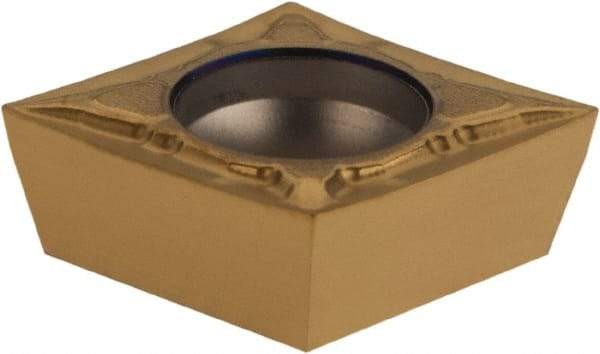

Seco - CPMT32.50.5 F1 Grade CP200 Carbide Turning Insert - 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.008" Corner Radius
Item #: 76062967
Brand: Seco
Model #: 64904
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 32.50.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | CP200 |
| Chip Breaker | F1 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | CPMT 32.50.5-F1 |
| Primary Workpiece Material | S; M |
| Secondary Workpiece Material | P |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
