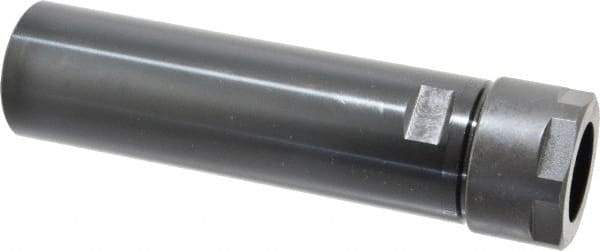

CRAFTSMAN Industries - 0.039" to 0.787" Capacity, Straight Shank, ER32 Collet Chuck - 6.2" OAL, 1-1/2" Shank Diam
Item #: 75980763
Brand: CRAFTSMAN Industries
Model #: SPH-ER32-1500
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 6.2000 |
| Nose Type | Stub Nose |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 5.2500 |
| Hex Diameter (Inch) | 1-1/2 |
| PSC Code | 5136 |
| Collet Nut Diameter (Decimal Inch) | 1.6100 |
