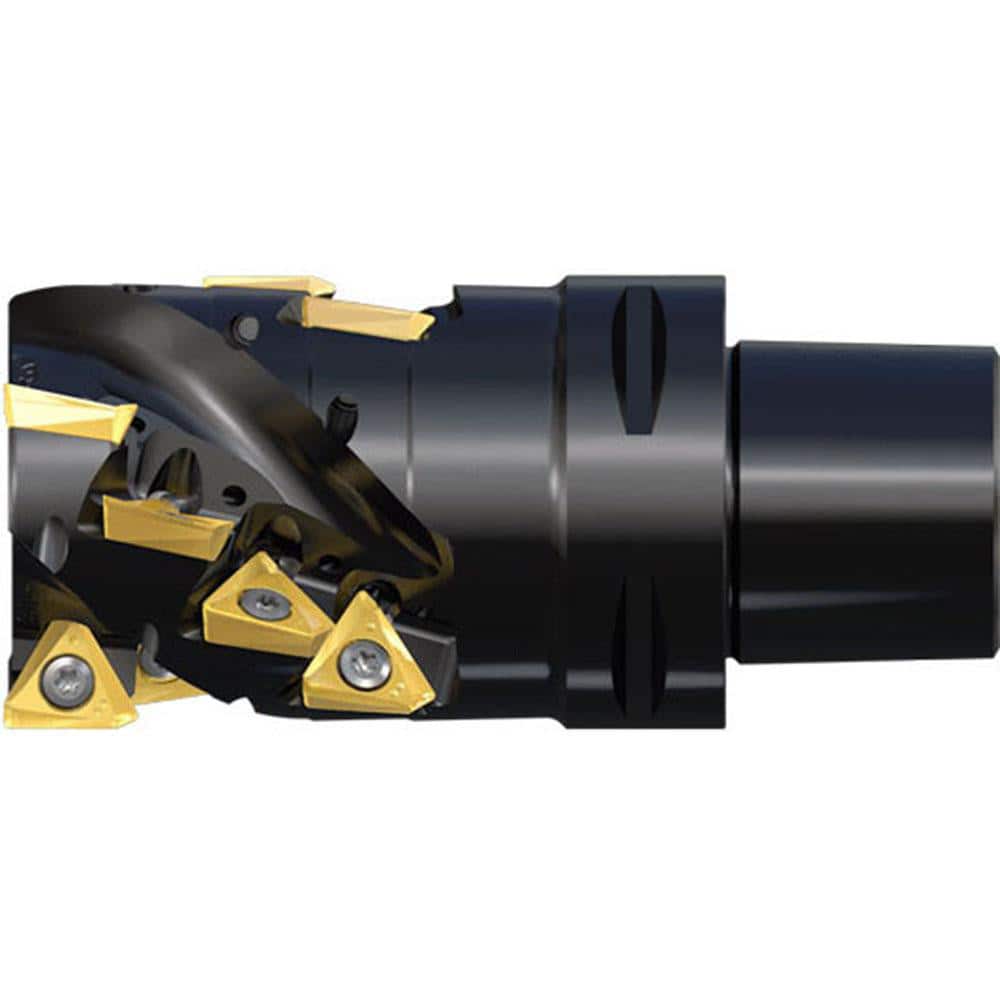

Indexable Square-Shoulder End Mill: C6TLA15M063R03L100, 63.0000'' Shank Dia, C6 Modular Connection, Modular Shank Uses 12, Normal Pressure, 100.00 mm OAL
Item #: 75945410
Brand: Tungaloy
Model #: 6745438
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 55.00 |
| Cutter Style | C-TLA |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 63.0000 |
| Shank Diameter (Inch) | 63 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 100.00 |
| Tool Material | Steel |
| Series | C-TLA |
| Lead Angle | 90 |
| Shank Length (mm) | 100.00 |
| Head Length (mm) | 78.00 |
| Modular Connection Size | C6 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 100.000 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Normal Pressure |
