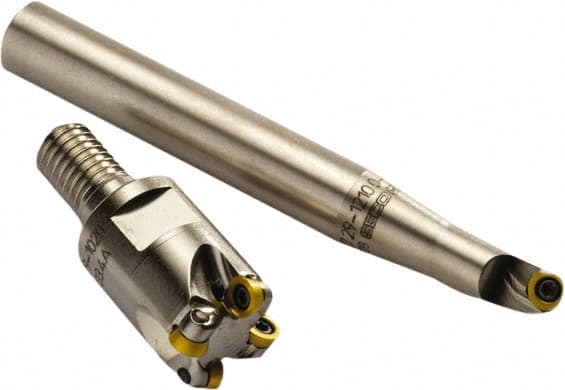

Seco - 23mm Cutting Diam, 3mm Max Depth of Cut, Arbor Hole Indexable Copy End Mill - 5 Inserts, RDH. 06T1 Insert, R217.29 Toolholder
Item #: 75931709
Brand: Seco
Model #: 96943
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 5 |
| Insert Style | RDH. 06T1 |
| Toolholder Style | R217.29 |
| Overall Length (mm) | 27.94 |
| Overall Length (Decimal Inch) | 1.1000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 5 |
| Maximum RPM | 23200 |
| Modular Connection Size | M12 |
