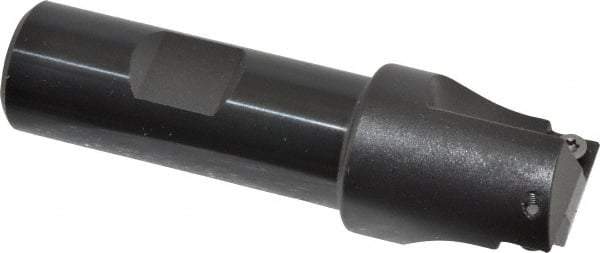

Kennametal - 1" Cut Diam, 0.28" Max Depth of Cut, 3/4" Shank Diam, 3-1/4" OAL, Indexable Square Shoulder End Mill - SDEB 2615. Inserts, Weldon Shank, 0° Lead Angle
Item #: 75817015
Brand: Kennametal
Model #: 1023643
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.2500 |
| Lead Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | KIPR |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.2200 |
| Weldon Flat | Yes |
| Insert Compatibility | SDEB 2615. |
| Maximum RPM | 10000 |
