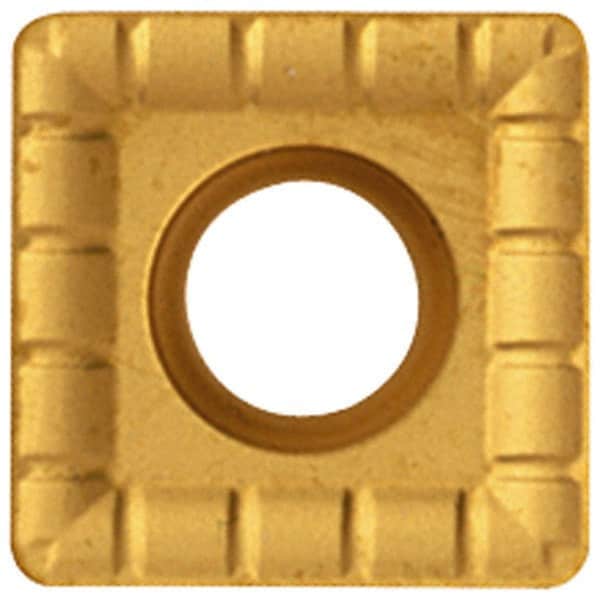

Kennametal - SPGT070304 MDT Grade KC720 Carbide Turning Insert - TiN Finish, 90° Square, 5/16" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 75816652
Brand: Kennametal
Model #: 1157975
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPGT |
| Insert Size | 070304 |
| Material | Carbide |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KC720 |
| Coating | TiN |
| Material Grade | C1/C5 |
| Chip Breaker | MDT |
| Hole Diameter (mm) | 2.85 |
| Hole Diameter (Decimal Inch) | 0.1122 |
| Rake | Positive |
| Rake Angle | 12 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 90 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Square |
