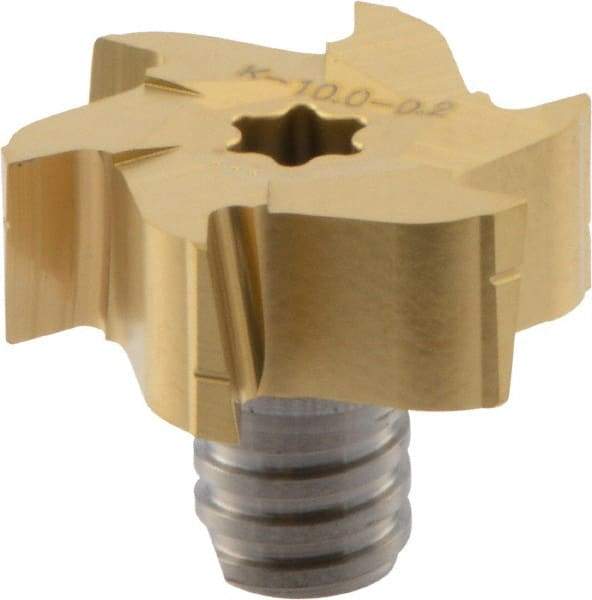

Iscar - MM GRIT Grade IC528 Carbide Groove Milling Tip Insert - TiCN/TiN Finish, 6 Flutes, 27.7mm Cutting Diam, 0.008" Cnr Rad
Item #: 75804765
Brand: Iscar
Model #: 6403754
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM GRIT |
| Milling Tip Type | Groove Milling |
| Material | Carbide |
| Cutting Diameter (mm) | 27.70 |
| Cutting Diameter (Decimal Inch) | 1.0910 |
| Manufacturer's Grade | IC528 |
| Number of Flutes | 6 |
| Coating | TiCN/TiN |
| Milling Tip Full Description | Groove Milling |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Cutting Width (Decimal Inch) | 0.3940 |
| Thread Size | T10 |
| Manufacturers Catalog Number | MM GRIT 28K-10.0-0.2 |
