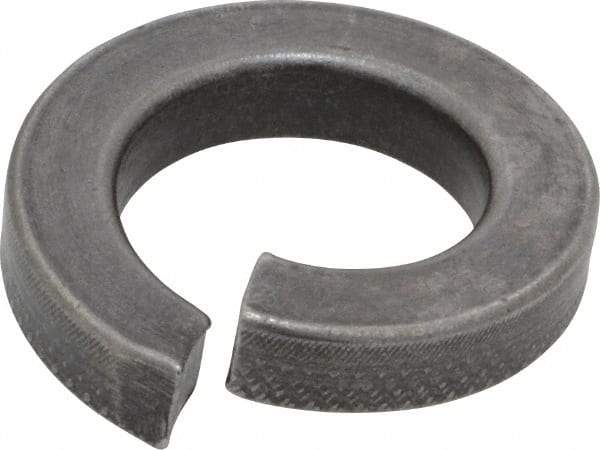

Value Collection - 1", 1.003" ID, 0.306" Thick Split Lock Washer - Grade 2 Spring Steel, Uncoated, 1.003" Min ID, 1.024" Max ID, 1.705" Max OD
Item #: 75558924
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1 |
| Material | Spring Steel |
| Material Grade | Grade 2 |
| Finish/Coating | Uncoated |
| Inside Diameter (Decimal Inch) | 1.0030 |
| Thickness (Decimal Inch) | 0.3060 |
| Minimum Inside Diameter (Decimal Inch) | 1.0030 |
| Maximum Inside Diameter (Decimal Inch) | 1.0240 |
| Maximum Outside Diameter (Decimal Inch) | 1.7050 |
| Military Specification | Does Not Meet Military Specifications |
