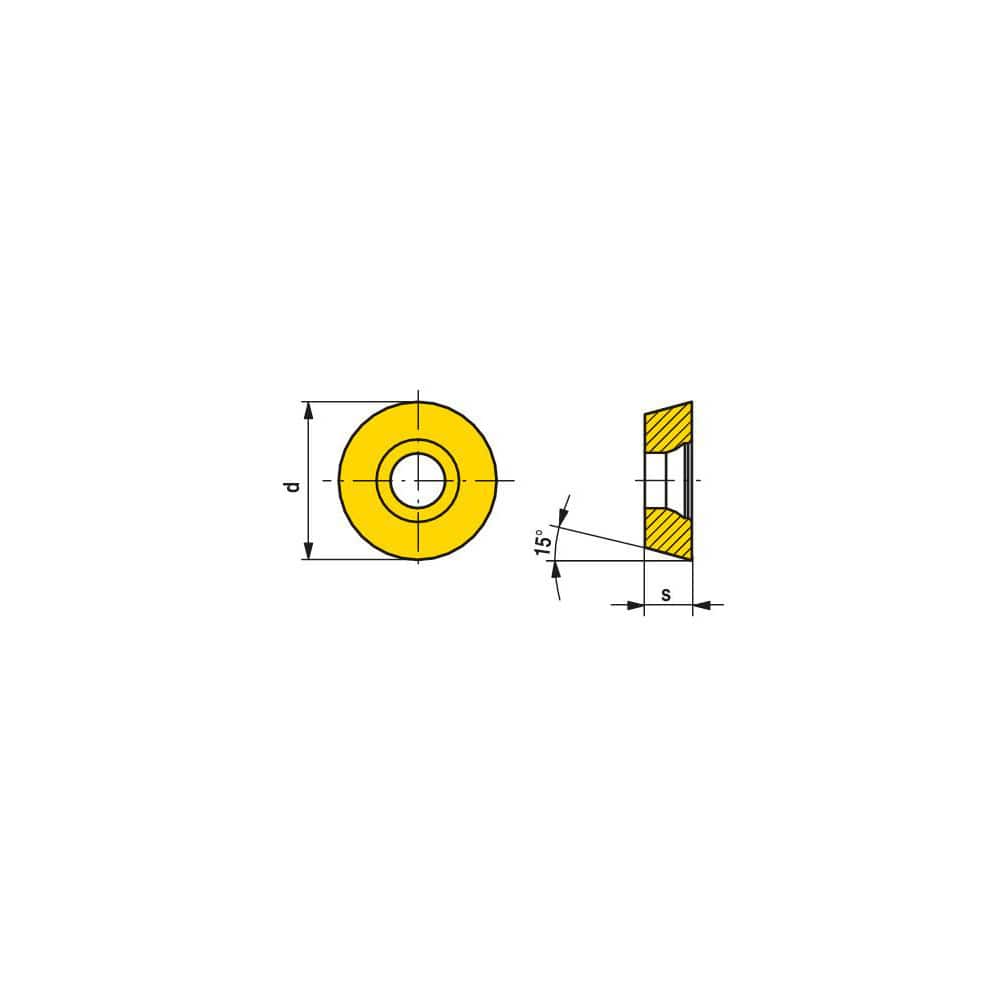

Milling Insert: RDMX 2006MOT WTN1205, WTN1205, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 75555482
Brand: Ceratizit
Model #: 56302161
Product Specifications
| Insert Style | RDHX |
| Insert Size Code | 2006 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | WTN1205 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Corner Radius (Decimal Inch) | 0.3937 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | RDHX |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3937 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | RDMX 2006MOT WTN1205 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2362 |
