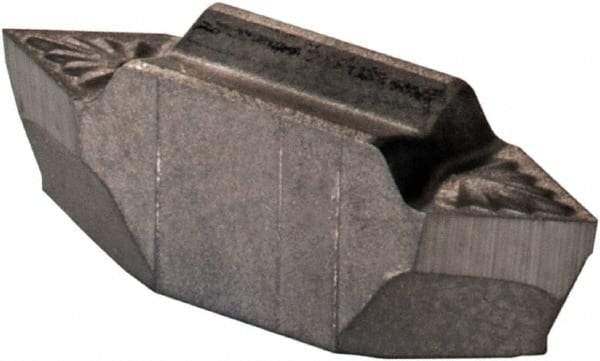

Iscar - GEPI25MT005 Grade IC08, Internal Partial Profile 60° Threading Insert - 0.9mm & 28 TPI Int Pitch, Uncoated, Carbide
Item #: 75258103
Brand: Iscar
Model #: 6403393
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEPI |
| Insert Size | 25MT005 |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 Degrees |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| Internal Pitch/TPI | 0.90 mm; 28 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Thickness (mm) | 2.49 |
| Thickness (Decimal Inch) | 0.0980 |
| Series | Cut Grip; IscarThread |
| Included Angle of Threading Tip | 60 |
| Length (Decimal Inch) | 0.3940 |
| Manufacturers Catalog Number | GEPI 2.5-MT0.05 |
