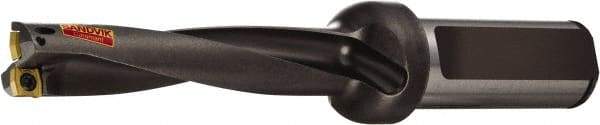

Sandvik Coromant - 71.37mm Max Drill Depth, 5xD, 14.27mm Diam, Indexable Insert Drill - 19.05mm Shank Diam, 3/4 Cylindrical Shank
Item #: 75185793
Brand: Sandvik Coromant
Model #: 5962372
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A881..LXxx-05 |
| Drill Diameter (mm) | 14.27 |
| Drill Diameter (Decimal Inch) | 0.5620 |
| Maximum Drill Depth (mm) | 71.37 |
| Maximum Drill Depth (Decimal Inch) | 2.8100 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Modular Connection Size | 3/4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Diameter (mm) | 19.05 |
| Overall Length/Projection (mm) | 138.21 |
| Overall Length/Projection (Decimal Inch) | 5.4415 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Body Length (Decimal Inch) | 2.9220 |
| Body Length (mm) | 74.00 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.889 |
