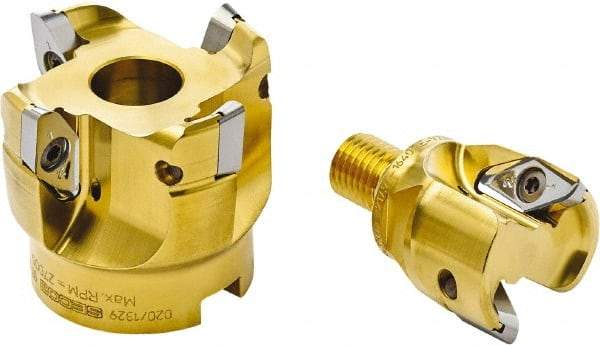

Seco - 100mm Cut Diam, 10mm Max Depth, 32mm Arbor Hole, 5 Inserts, VPGX 2206 Insert Style, Indexable Copy Face Mill - 22,000 Max RPM, 57mm High, Through Coolant
Item #: 75150987
Brand: Seco
Model #: 35397
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 57.00 |
| Overall Height (Decimal Inch) | 2.2441 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | VPGX 2206 |
| Through Coolant | Yes |
| Maximum RPM | 22000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.0315 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | VPGX 220605ER-E10; VPGX 220608PDER-E10; VPGX 220616ER-E10; VPGX 220620ER-E10; VPGX 220624ER-E10; VPGX 220631EN-E10; VPGX 220640ER-E10; VPGX 220648ER-E10; VPGX 220663ER-E10 |
