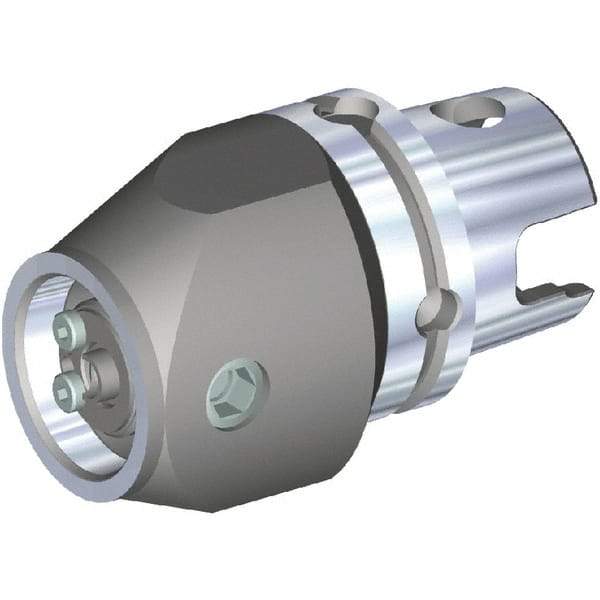

Kennametal - KM80ATC Outside Modular Connection, KM63 Inside Modular Connection, KM80 to KM63 Offset Reducing Adapter - 105mm Projection, 80.01mm Nose Diam, 150.01mm OAL, Through Coolant
Item #: 75049916
Brand: Kennametal
Model #: 2203620
Exact Tooling IR#: 04
Features and Benefits
Offset modular reducing adapters are used to hold the connecting toolholder off the centerline during an operation.
| Product Specifications | |
|---|---|
| Type | Offset Reducing Adapter |
| Taper Adapter Type | KM80 to KM63 |
| Outside Modular Connection Size | KM80ATC |
| Inside Modular Connection Size | KM63 |
| Projection (Decimal Inch) | 4.1340 |
| Projection (mm) | 105.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 3.1500 |
| Nose Diameter (mm) | 80.01 |
| Offset (Decimal Inch) | 0.7870 |
| Offset (mm) | 19.99 |
| Overall Length (mm) | 150.01 |
| Overall Length (Decimal Inch) | 5.9060 |
