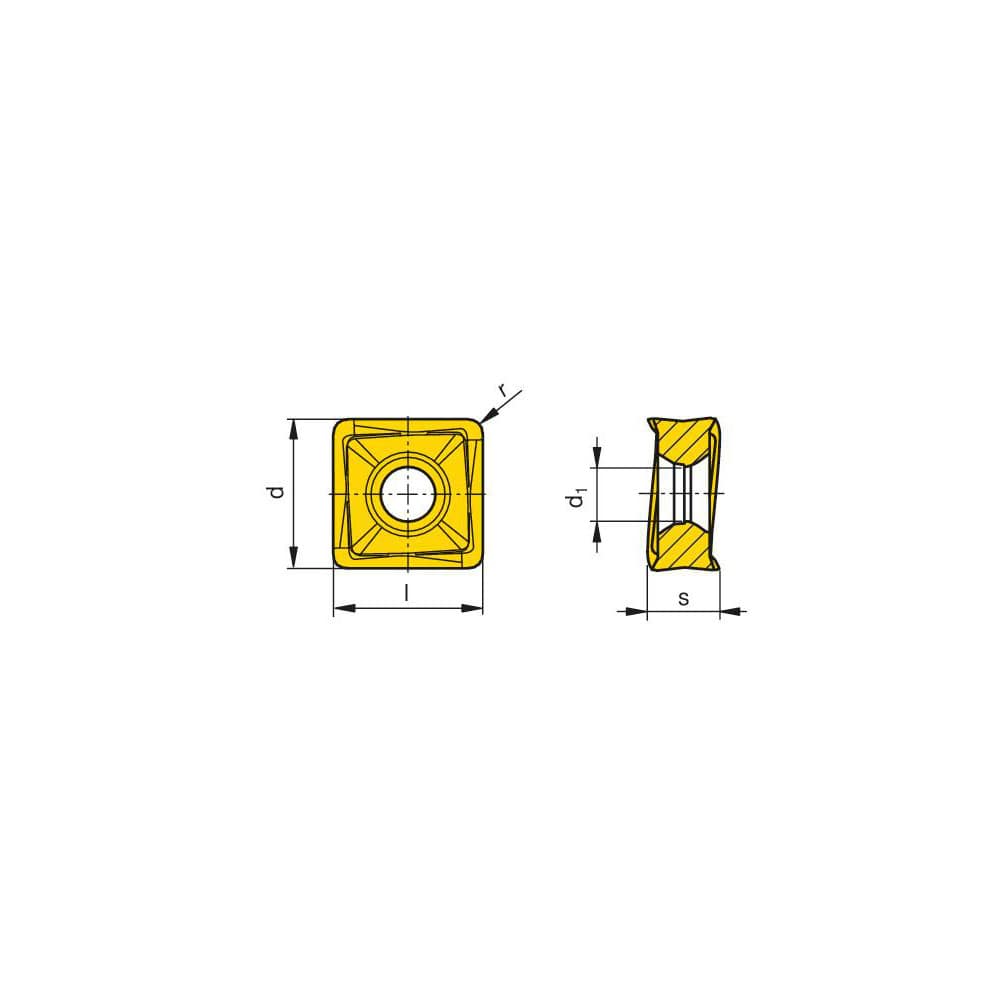

Milling Insert: SNHU 09T316SR-F50 CTPM240, CTPM240, Solid Carbide N/A Finish,
Item #: 75016188
Brand: Ceratizit
Model #: 5111941600
Product Specifications
| Insert Style | SNHU |
| Insert Size Code | 09T3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM240 |
| Inscribed Circle (Decimal Inch) | 0.3602 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Insert Hand | Right Hand |
| Relief Angle | 6.50 |
| Series | SNHU |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1516 |
| Maximum Depth of Cut (Decimal Inch) | 0.1801 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3602 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | SNHU 09T316SR-F50 CTPM240 |
| Iso Code | SNHU 09T316SR-F50 CTPM240 |
| Chip Breaker | F50 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1457 |
