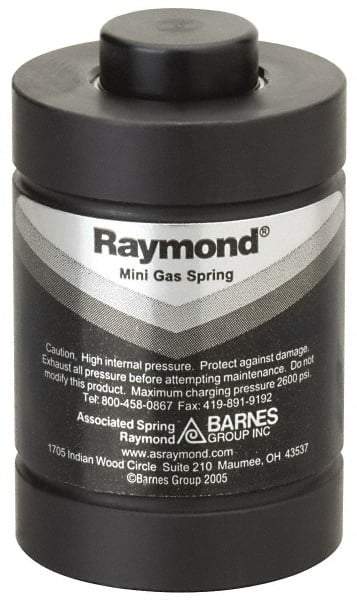

Associated Spring Raymond - M6x1 Mt Hole, 1.18" Rod Diam, 1.97" Diam, 6mm Max Stroke, Nitrogen Gas Spring Cylinder - 2.6" OAL, 5,620 Lb Full Stroke Spring Force, 2,175 psi Initial Charge
Item #: 75003822
Brand: Associated Spring Raymond
Model #: CU 1800-006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Diameter (Decimal Inch) | 1.9700 |
| Maximum Stroke (Decimal Inch) | 0.236 |
| Maximum Stroke (mm) | 6.00 |
| Spring Force Full Stroke | 5620 |
| Spring Force Initial | 4045.0 |
| Overall Length (Decimal Inch) | 2.6000 |
| Initial Charge Pressure | 2175 |
| Mounting Hole Thread Size | M6x1 |
| Rod Diameter (Decimal Inch) | 1.180 |
