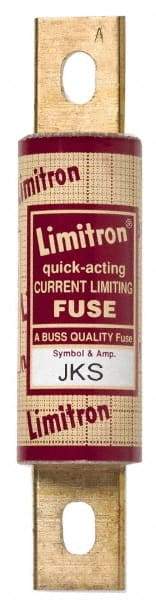

Cooper Bussmann - 600 VAC, 400 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 7-1/8" OAL, 200 (RMS) kA Rating, 2" Diam
Item #: 74975673
Brand: Cooper Bussmann
Model #: JKS-400
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | J |
| Amperage | 400 |
| Voltage | 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 181 |
| Overall Length (Inch) | 7-1/8 |
| Overall Length (Decimal Inch) | 7.1300 |
| Overall Diameter (Inch) | 2 |
| Mounting Type | Bolt-on |
| Interrupting Rating (kA) | 200 (RMS) |
| Standards Met | CE Certified; CSA Class 1422-02 File 53787 Certified; UL Listed Guide JDDZ File E4273 |
