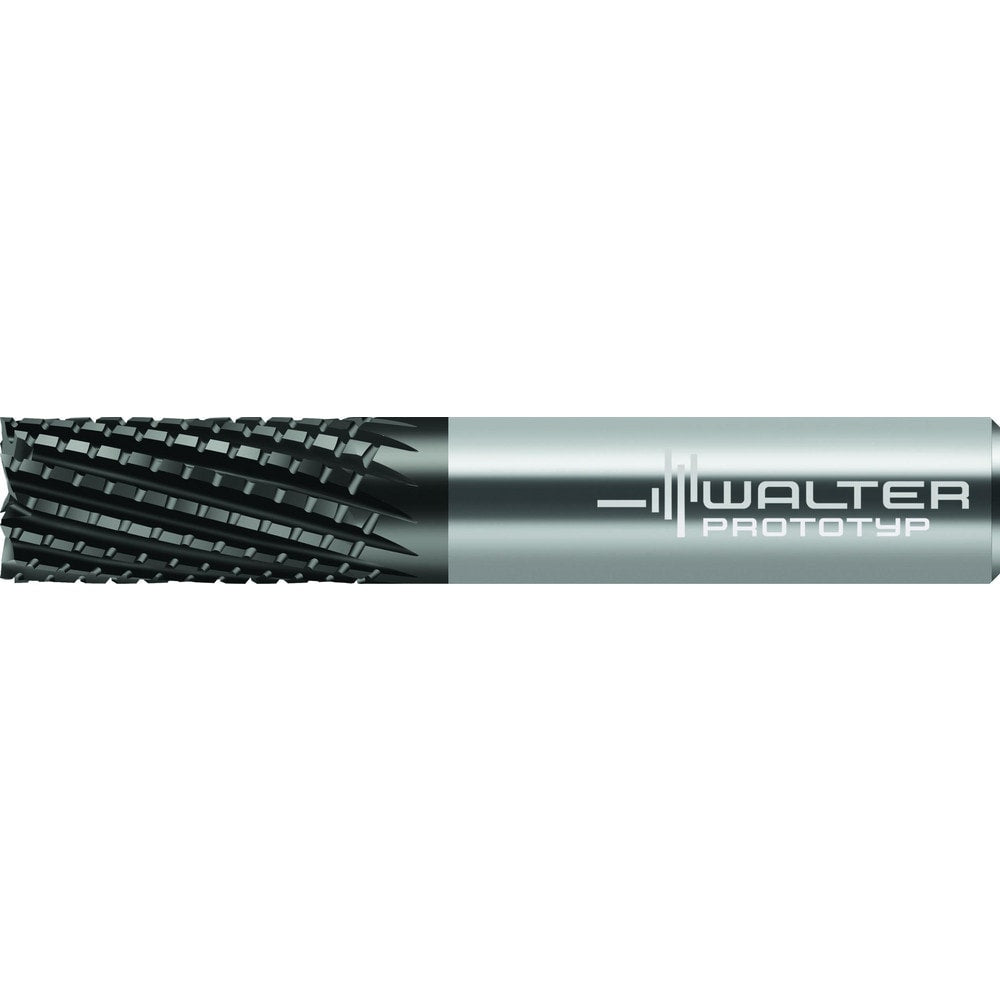

Roughing End Mill: 3/16" Dia, 8 Flute, Single End, Solid Carbide, Chipbreaker
Item #: 06943849
Brand: Walter-Prototyp
Model #: 8416693
Product Specifications
| Mill Diameter (Fractional Inch) | 3/16 |
| Number Of Flutes | 8 |
| End Mill Material | Solid Carbide |
| Length of Cut | 3/8 |
| Coating/Finish | Diamond |
| Shank Diameter (Inch) | 3/16 |
| Centercutting | No |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Shank Type | Straight-Cylindrical |
| Extended Reach | No |
| Variable Helix | No |
| Chipbreaker | Yes |
| Material Grade | Solid Carbide |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Shank Diameter Tolerance | h6 |
| Reach Length (Decimal Inch) | 0.3750 |
| Reach Length (mm) | 9.53 |
| Series | MA290.A |
| UNSPSC Code | 23241614 |
