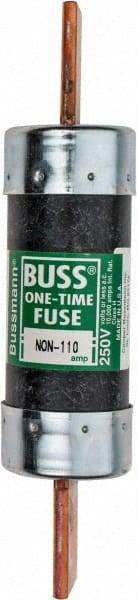

Cooper Bussmann - 125 VDC, 250 VAC, 110 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 7-1/8" OAL, 10 (RMS Symmetrical) kA Rating, 1-9/16" Diam
Item #: 74701103
Brand: Cooper Bussmann
Model #: NON-110
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | H |
| Amperage | 110 |
| Voltage | 125 VDC; 250 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 181 |
| Overall Length (Inch) | 7-1/8 |
| Overall Length (Decimal Inch) | 7.1300 |
| Overall Diameter (mm) | 39.60 |
| Overall Diameter (Inch) | 1-9/16 |
| Overall Diameter (Decimal Inch) | 1.5600 |
| Mounting Type | Bolt-on |
| Interrupting Rating (kA) | 10 (RMS Symmetrical) |
| Standards Met | CE Certified; CSA Class 1421-01 File 53787 Certified; UL 248-6; UL Guide JDDZ File E4274; UL Listed |
