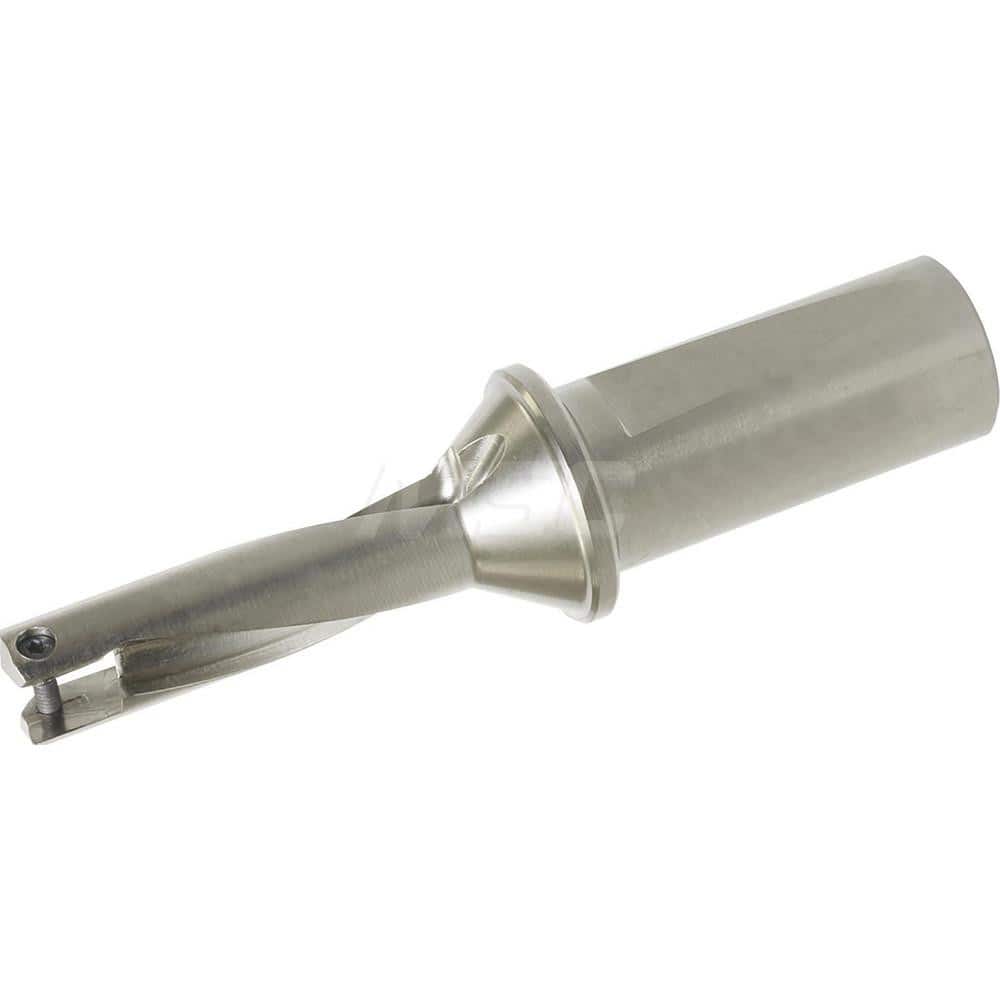

Kyocera S75DRS12042, DRS Magic Drill 0.4720″ Cutting Diameter, 0.7500″ Shank Diameter, Coolant-Through Indexable Insert Drill
Item #: 74538927
Brand: Kyocera
Model #: 8802294
Product Specifications
| Drill Style | DRS |
| Maximum Drill Diameter (mm) | 11.99 |
| Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Diameter (mm) | 11.99 |
| Maximum Drill Depth (mm) | 42.01 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Number of Drill Inserts | 1 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | DS120 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Series | DRS |
| Body Length | 56.01 |
| Shank Length (mm) | 43.00 |
| Overall Length/Projection (mm) | 99.01 |
| Insert Compatibility | DS120 |
| Collar Diameter (mm) | 25.98 |
| Extension From Holder (Inch) | 2.2050 |
| Coolant Through | Yes |
