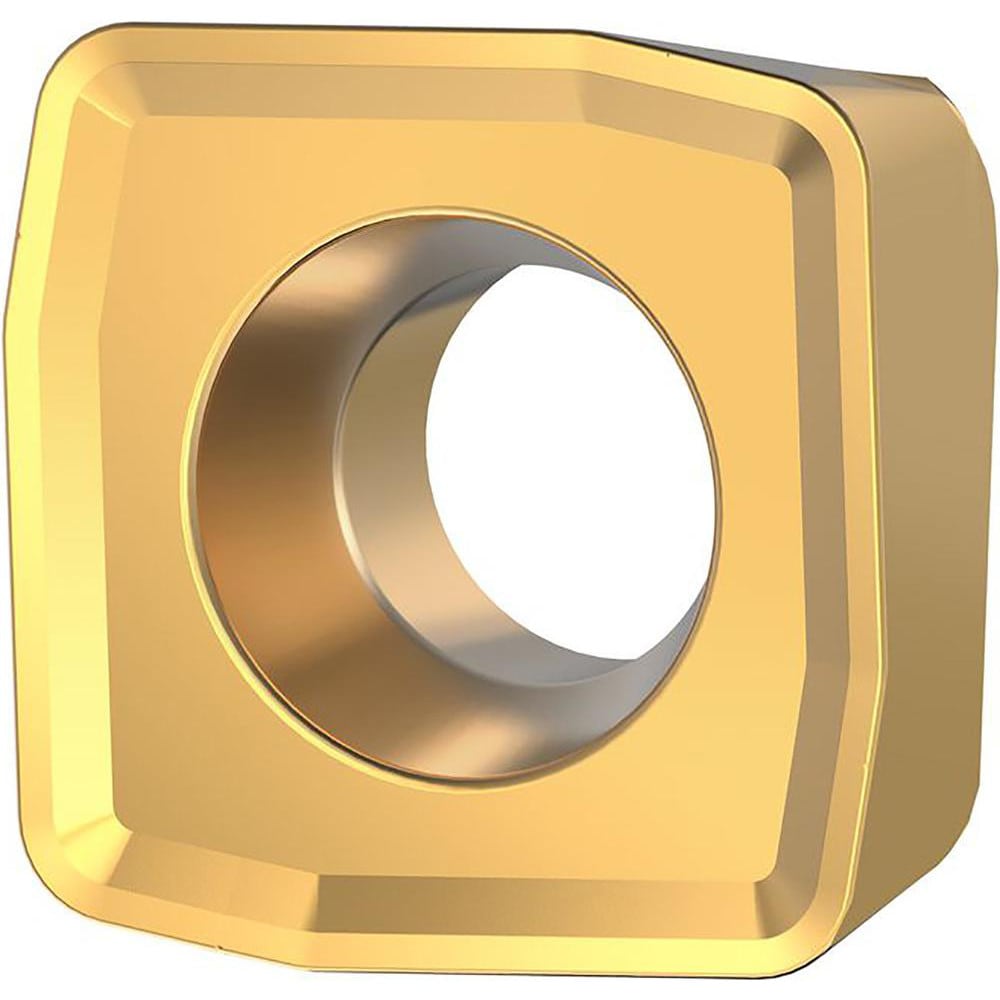

Milling Insert: XPET060308ERM41 KCSM40, Carbide
Item #: 41086208
Brand: Kennametal
Model #: 7142570
Product Specifications
| Insert Style | XPET |
| Insert Size | 060308 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KCSM40 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (mm) | 3.1700 |
| Coating/Finish | AlTiN |
| Relief Angle | 9.000 |
| Insert Size Code | 060308 |
| Material Grade | KCSM40 |
| Inscribed Circle (mm) | 6.83 |
| Thickness Range (Decimal Inch) | 0.1000 - 0.1250 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.0000 - 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Maximum Depth of Cut (mm) | 0.90 |
| Series | 7792VX06 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.0000 |
| Cutting Edge Effective Length (mm) | 6.83 |
| Rake | Positive |
| Primary Workpiece Material | High-Temperature Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XPET060308ERM41 |
| Iso Code | XPET060308ERM41 |
| Concave Radius (Decimal Inch) | 0.0310 |
| Rake Angle | 9.000 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | XPET060308ERM41 KCSM40 |
| Cutter Series Compatibility | 7792VX06 |
| Chip Breaker | M41 |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Length (mm) | 6.83 |
| Width (Decimal Inch - 4 Decimals) | 0.2689 |
| Width (mm - 2 Decimals) | 6.83 |
| Multi-Use Tool | Yes |
