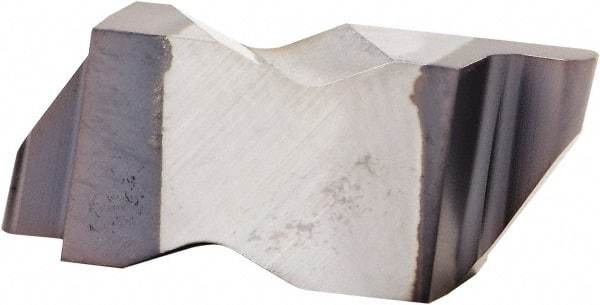

Kennametal - 3M100NR Grade KC5025, 2mm Cutting Width Carbide Grooving Insert - 2.39mm Max Depth of Cut, Right Hand, 1mm Corner Radius, AlTiN Finish
Item #: 74303090
Brand: Kennametal
Model #: 3388466
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NR |
| Insert Size | 3M100 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KC5025 |
| Coating | AlTiN |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Insert Seat Size | 3 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coating Process | PVD |
| Series | Top Notch |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch) | 0.1960 |
| Included Angle | 55 |
