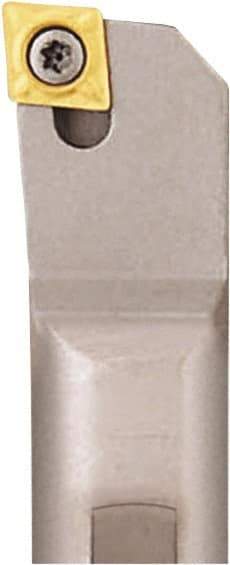

Seco - 1/2" Min Bore Diam, 6" OAL, 6mm Shank Diam, E-SCLC Indexable Boring Bar - CC.. 21.5.. Insert, Screw Holding Method
Item #: 74246653
Brand: Seco
Model #: 93166
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLC |
| Series | Screw-On |
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Insert Compatibility | CC.. 21.5.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CCGT 21.50-F1; CCGT 21.50.0-F1; CCGT 21.50.5F-AL; CCGT 21.51F-AL; CCGT 21.51L-UX; CCGT 21.51R-UX; CCMT 21.50.5-F1; CCMT 21.50.5-F2; CCMT 21.51-F1; CCMT 21.51-F2; CCMT 21.51W-F1; CCMT 21.52-F1; CCMT 21.52-F2 |
| Toolholder Material | Carbide |
