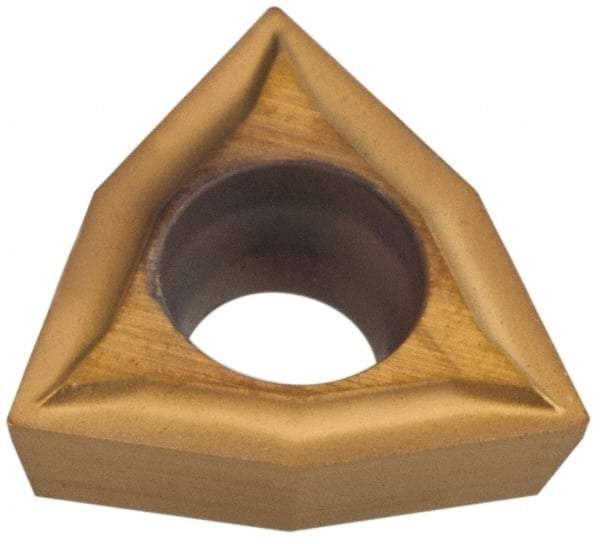

Hertel - WPGT 2150 HF1 HP520B Grade Carbide Boring Insert - Trigon, 80° Incl Angle, 1/4" Inscr Circle, 3/32" Thick, 0.004" Cnr Rad
Item #: 74161357
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | WPGT |
| Insert Size | 21.50 |
| Material Grade | C5 |
| Manufacturer's Grade | HP520B |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating | TiN |
| Chipbreaker | HF1 |
| Relief Angle | 11 |
| Included Angle | 80 |
| Coating Process | PVD |
| Insert Holding Method | Screw |
| Shape | Trigon |
