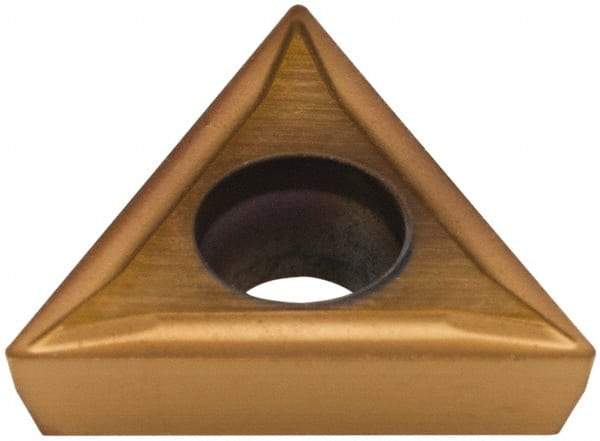

Hertel - TPMT21.50.5 GP Grade HP520B Carbide Boring Insert - TiN Finish, 60° Triangle, 11° Relief Angle, 1/4" Inscr Circle, 0.094" Thick, 0.007" Corner Radius
Item #: 74161035
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TPMT |
| Insert Size | 21.50.5 |
| Material Grade | C5 |
| Manufacturer's Grade | HP520B |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Coating | TiN |
| Chipbreaker | GP |
| Relief Angle | 11 |
| Included Angle | 60 |
| Coating Process | PVD |
| Insert Holding Method | Screw |
| Shape | Triangle |
