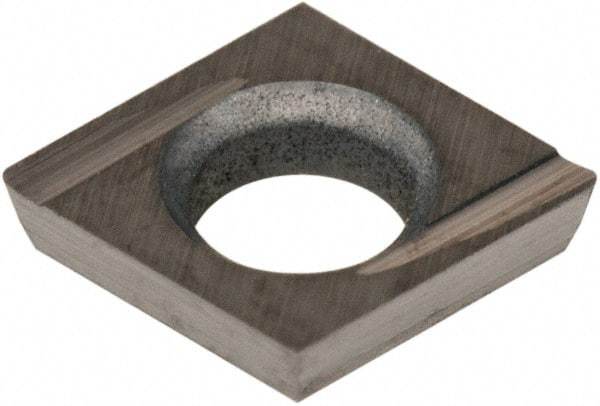

Hertel - CDHH 120605 HT540B Grade Carbide Boring Insert - Uncoated, Diamond, 80° Incl Angle, Left Hand, 5/32" Inscr Circle, .04" Thick, 0.007" Cnr Rad
Item #: 74160268
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CDHH |
| Insert Size | 1.20.60.5 |
| Material Grade | C1 |
| Manufacturer's Grade | HT540B |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Thickness (Decimal Inch) | 0.0400 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Coating | Uncoated |
| Relief Angle | 15 |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Shape | Diamond |
