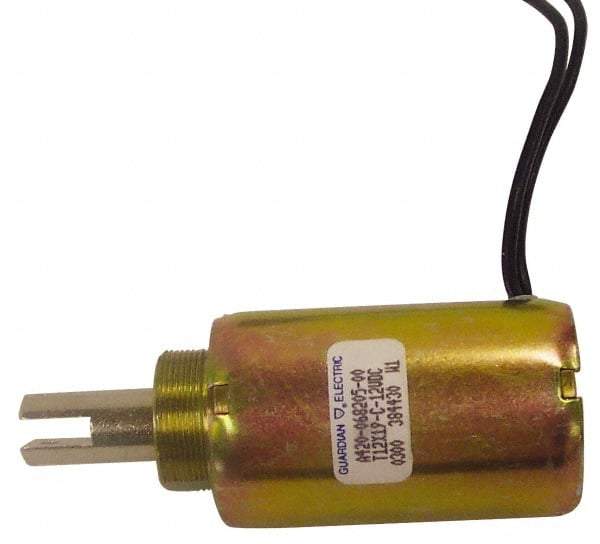

Guardian Electric - 526 Milliamp, 0.05 to 1 Inch Stroke, Push Force, Tubular Electrical Solenoid - 12 VDC Volt, Leads, 1.68 Inch Long, 1.41 Inch Extended Length
Item #: 74098054
Brand: Guardian Electric
Model #: TP12X13-C-12D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Solenoid Type | Tubular |
| Action | Push |
| Maximum Stroke (Decimal Inch) | 1 |
| Minimum Stroke (Decimal Inch) | 0.0500 |
| Amperage (mA) | 526 |
| Voltage | 12 VDC |
| Terminal Type | Leads |
| Extended Length (Decimal Inch) | 1.4100 |
| Overall Length (Decimal Inch) | 1.6800 |
| Coil Resistance (Ohms) | 22.80 |
| Duty Cycle | Continuous |
| Standards Met | RoHS Compliant 2002/95/EC; UL Recognized |
