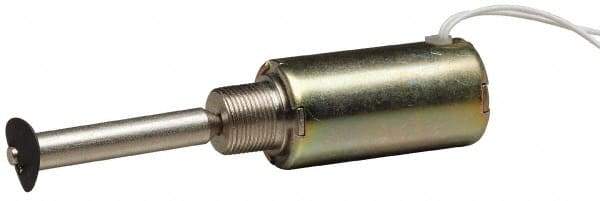

Guardian Electric - 403 Milliamp, 0.05 to 1/2 Inch Stroke, Push Force, C Frame Electrical Solenoid - 12 VDC Volt, Quick Connect, 1.13 Inch Long
Item #: 74097734
Brand: Guardian Electric
Model #: 28P-C-12D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Solenoid Type | C-Frame |
| Action | Push |
| Maximum Stroke (Decimal Inch) | 1/2 |
| Minimum Stroke (Decimal Inch) | 0.0500 |
| Amperage (mA) | 403 |
| Voltage | 12 VDC |
| Terminal Type | Quick Connect |
| Overall Length (Decimal Inch) | 1.1300 |
| Overall Width (Decimal Inch) | 1.1900 |
| Overall Height (Decimal Inch) | 1.0800 |
| Coil Resistance (Ohms) | 29.80 |
| Duty Cycle | Continuous |
| Standards Met | RoHS Compliant 2002/95/EC; UL Recognized |
