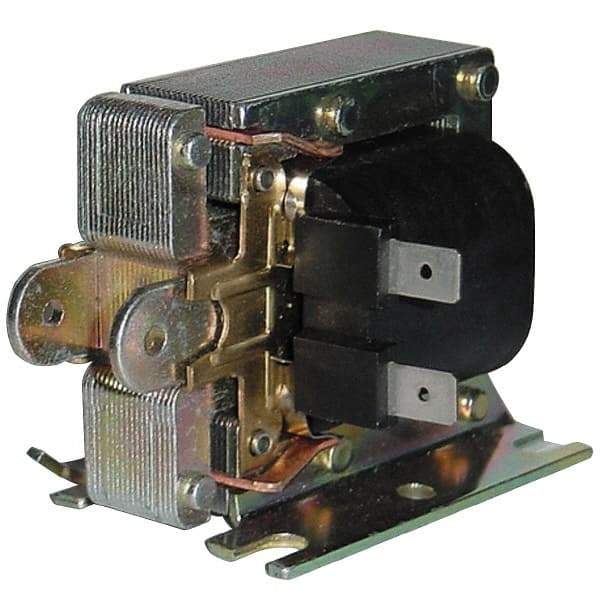

Guardian Electric - 204 Milliamp, 1/8 to 1 Inch Stroke, Pull Force, Laminated Electrical Solenoid - 240 VAC Volt, Quick Connect, 2-1/2 Inch Long
Item #: 74097486
Brand: Guardian Electric
Model #: 18-C-240VAC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Solenoid Type | Laminated |
| Action | Pull |
| Maximum Stroke (Decimal Inch) | 1 |
| Minimum Stroke (Decimal Inch) | 1/8 |
| Maximum Pull Force (oz.) | 155 |
| Minimum Pull Force (oz.) | 60 |
| Amperage (mA) | 204 |
| Voltage | 240 VAC |
| Terminal Type | Quick Connect |
| Overall Length (Decimal Inch) | 2-1/2 |
| Overall Width (Decimal Inch) | 1.8110 |
| Overall Height (Decimal Inch) | 2.0930 |
| Coil Resistance (Ohms) | 80.70 |
| Duty Cycle | Continuous |
| Standards Met | RoHS Compliant 2002/95/EC; UL Recognized |
