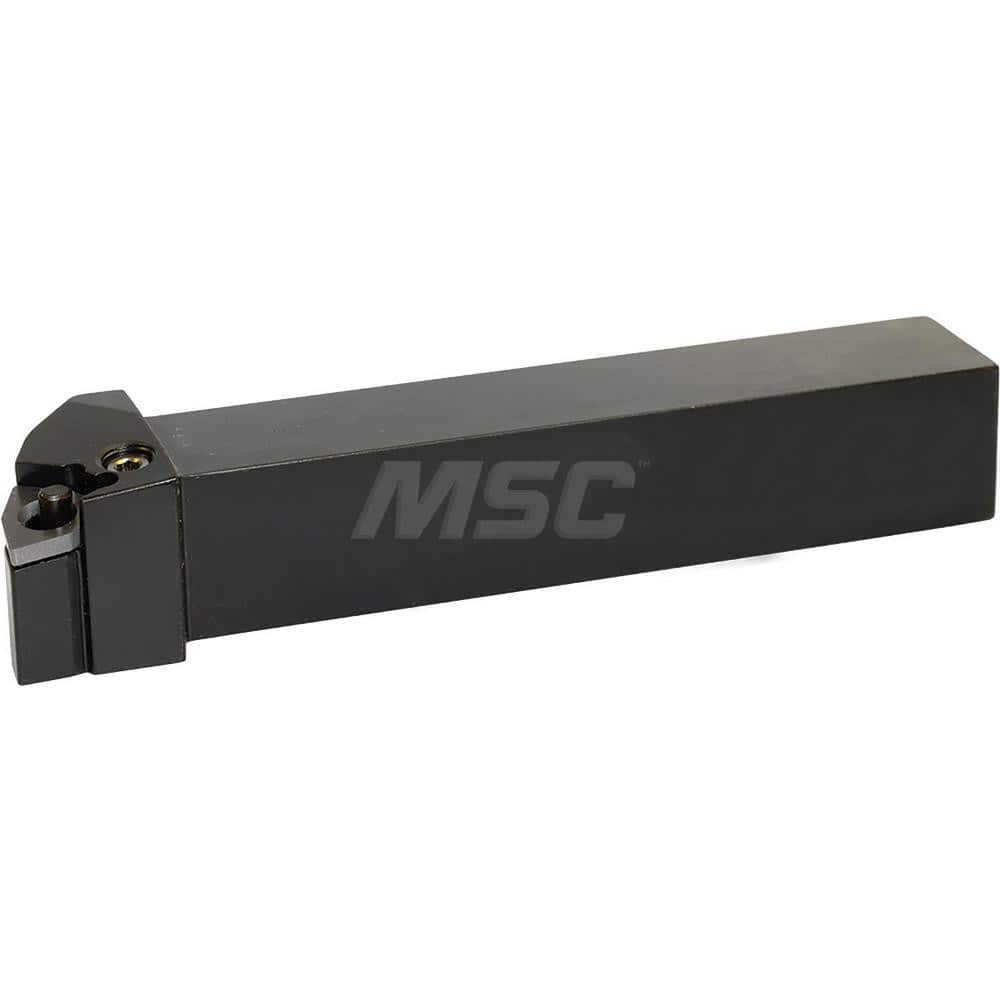

Indexable Turning Toolholders; Hand of Holder: Right Hand; Toolholder Style: LLTH; Rake: Negative; Rake Angle: -6; Multi-use Tool: Yes; Lead Angle: 95.0; Insert Holding Method: Lock Pin; Lever Lock; Shank Width (Decimal Inch): 1.0000; Shank Width (Inch):
Item #: 73954984
Brand: Kyocera
Model #: 8802015
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | LLTH |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | Yes |
| Lead Angle | 95.0 |
| Insert Holding Method | Lock Pin; Lever Lock |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Insert Compatibility | WNMG33?; WNGG33? |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | LLTH |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | External Turning; Facing |
| Toolholder Material | Steel |
| ISO Number | PWLNR163D |
| Complete Insert Compatibility | WNMG33?; WNGG33? |
| Coolant Through | No |
