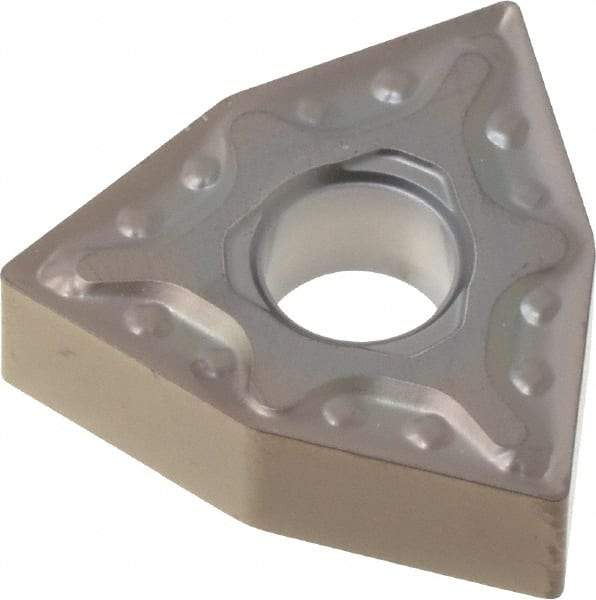

Walter - WNMG431 NM4 Grade WSM30 Carbide Turning Insert - 80° Trigon, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 73818247
Brand: Walter
Model #: 5357523
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WSM30 |
| Material Grade | C6 |
| Chip Breaker | NM4 |
| Hole Diameter (mm) | 5.13 |
| Hole Diameter (Decimal Inch) | 0.2020 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | M |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
