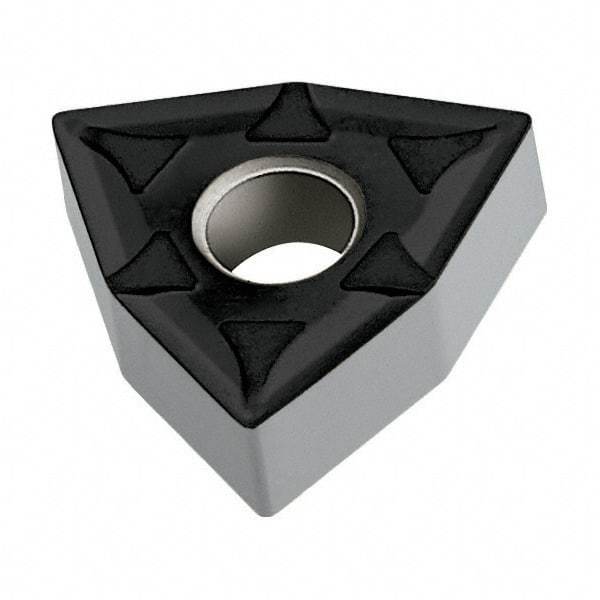

Walter - WNMG331 NF3 Grade WPP01 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 73817322
Brand: Walter
Model #: 5263261
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WPP01 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P01/K10 |
| Chip Breaker | NF3 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | WNMG331-NF3 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 80 |
| Series | Tiger-tec |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Trigon |
