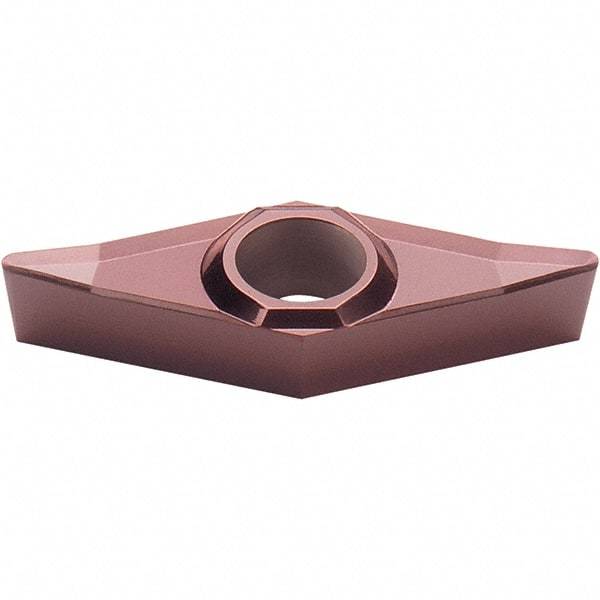

Walter - VCGT331 PM2 Grade WXN10 Carbide Turning Insert - TiCN Plus Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 73813693
Brand: Walter
Model #: 5194852
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WXN10 |
| Coating | TiCN Plus |
| Material Grade | N10/P01/M01 |
| Chip Breaker | PM2 |
| ISO Number | VCGT160404-PM2 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | VCGT331-PM2 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | M; P |
| Included Angle | 35 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
