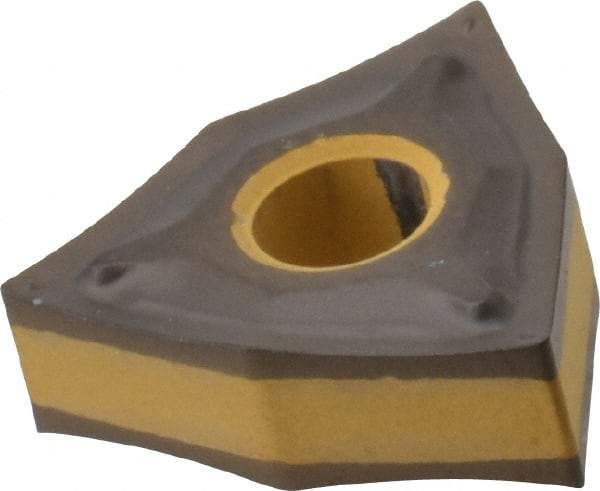

Iscar - WNMG3-0 NF Grade IC8250 Carbide Turning Insert - TiCN/Al2O3 Finish, 80° Trigon, 3/8" Inscr Circle, 5/32" Thick, 0.008" Corner Radius
Item #: 73597494
Brand: Iscar
Model #: 5507828
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 3-0 |
| Material | Carbide |
| Length (mm) | 6.52 |
| Length (Decimal Inch) | 0.2567 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | NF |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
