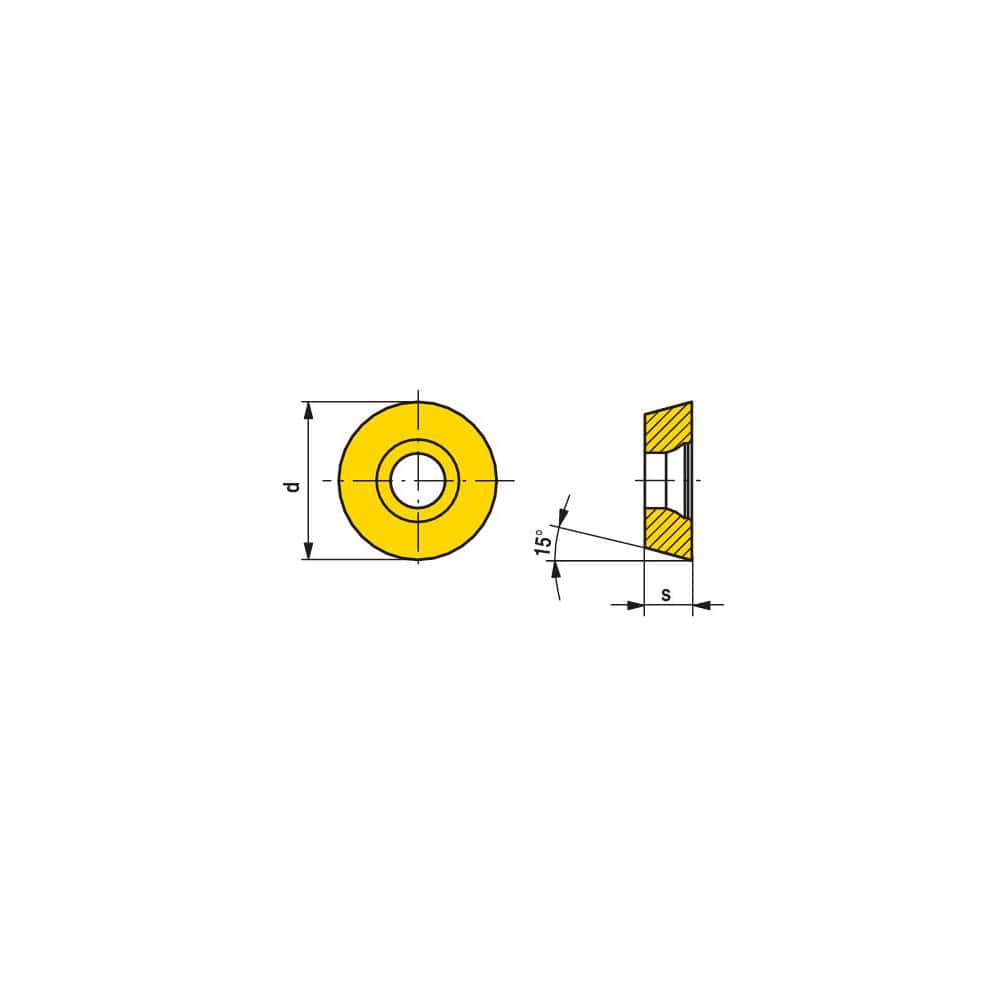

Milling Insert: RDEX 0702MOT WAX1240, WAX1240, Solid Carbide N/A Finish,
Item #: 73558843
Brand: Ceratizit
Model #: 56314611
Product Specifications
| Insert Style | RDEX |
| Insert Size Code | 0702 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WAX1240 |
| Inscribed Circle (Decimal Inch) | 0.2756 |
| Corner Radius (Decimal Inch) | 0.1378 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | RDEX |
| Coating Process | CVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1378 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | RDEX 0702MOT WAX1240 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
