Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: VC..1103; Toolholder Style: SVJCR; Rake: Positive; Rake Angle: 7.000; Multi-use Tool: No; Lead Angle: 93.0; Insert Holding Method: Screw; Shank Width (mm): 12.00; S
Item #: 73552887
Brand: Ceratizit
Model #: 70696012

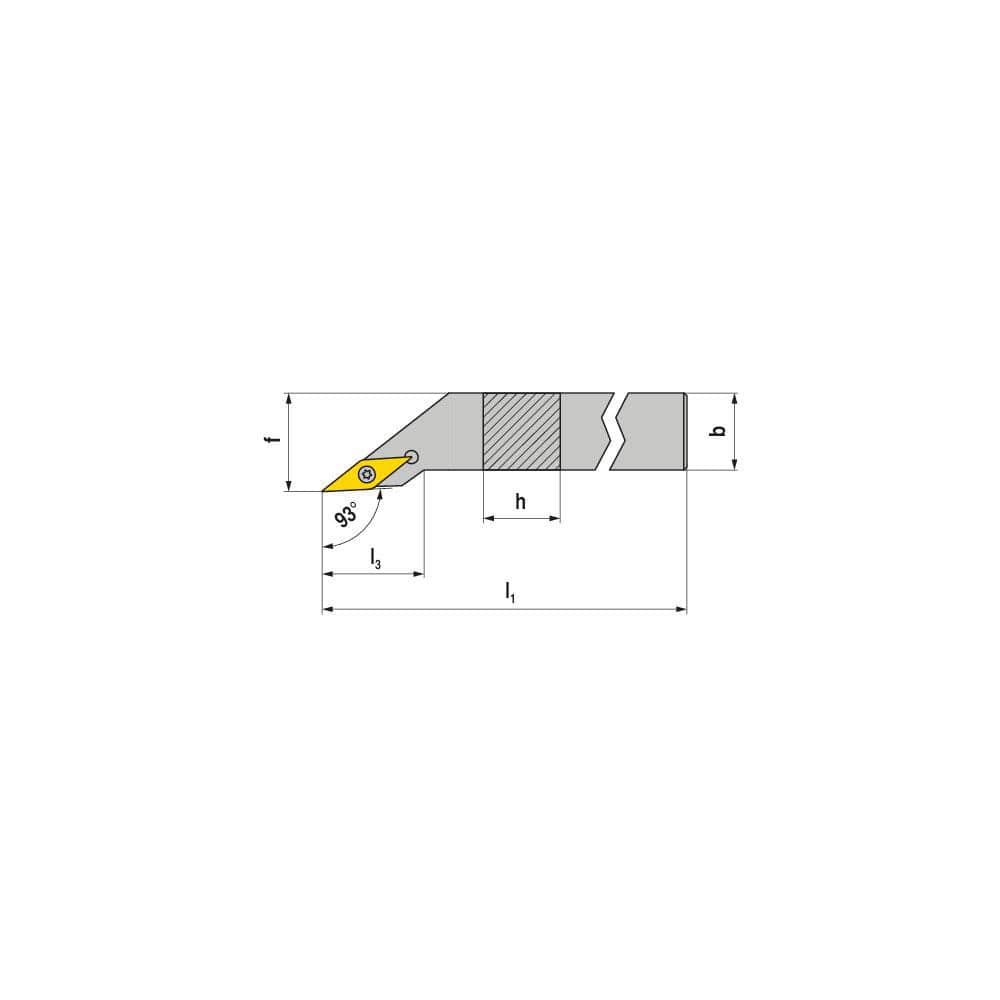

Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VC..1103 |
| Toolholder Style | SVJCR |
| Rake | Positive |
| Rake Angle | 7.000 |
| Multi-use Tool | No |
| Lead Angle | 93.0 |
| Insert Holding Method | Screw |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Series | MAXILOCK S |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 80.0000 |
| Overall Length (Inch) | 80 |
| Cutting Tool Application | Turning |
| Head Length (mm) | 21.50 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Insert Thickness | 3.18 |
| Insert Inscribed Circle (mm) | 6.35 |
