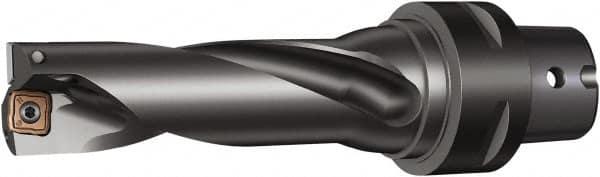

Sandvik Coromant - 60mm Max Drill Depth, 3xD, 19mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 73529463
Brand: Sandvik Coromant
Model #: 5765321
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 19.00 |
| Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Depth (mm) | 60.00 |
| Maximum Drill Depth (Decimal Inch) | 2.3622 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.60 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 57.00 |
| Flute Length (Decimal Inch) | 2.2441 |
| Body Length (Decimal Inch) | 3.7646 |
| Body Length (mm) | 95.62 |
| Shank Length (mm) | 24.38 |
| Shank Length (Decimal Inch) | 0.9599 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.30 |
