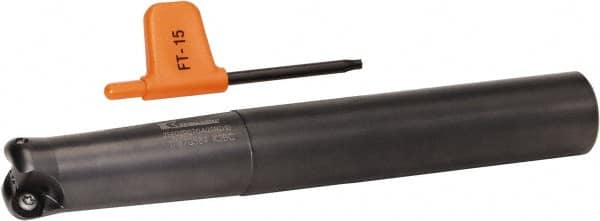

Kennametal - 25mm Cutting Diam, 63/64" Shank Diam, 63/64" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RD.X 1003.. Insert
Item #: 73345142
Brand: Kennametal
Model #: 1888457
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Number of Cutter Inserts | 2 |
| Insert Style | RD.X 1003.. |
| Series | KDM |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 15.00 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 110.00 |
| Shank Length (Decimal Inch) | 4.3307 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
