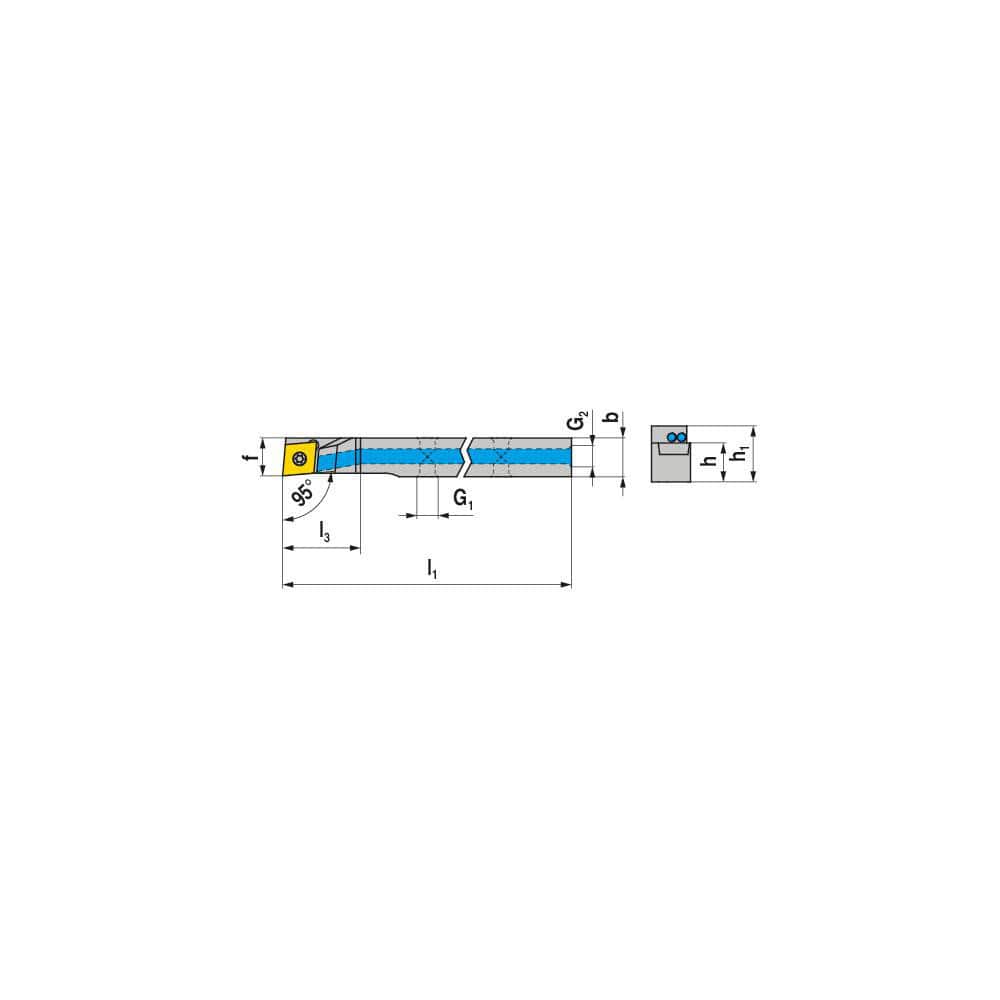

Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: CC..0602; Toolholder Style: SCLCR; Rake: Positive; Rake Angle: 7.000; Multi-use Tool: No; Lead Angle: 95.0; Insert Holding Method: Screw; Shank Width (mm): 10.00; S
Item #: 73280703
Brand: Ceratizit
Model #: 72350010
Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | CC..0602 |
| Toolholder Style | SCLCR |
| Rake | Positive |
| Rake Angle | 7.000 |
| Multi-use Tool | No |
| Lead Angle | 95.0 |
| Insert Holding Method | Screw |
| Shank Width (mm) | 10.00 |
| Shank Height (mm) | 10.00 |
| Series | MAXILOCK S |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 100.0000 |
| Overall Length (Inch) | 100 |
| Cutting Tool Application | Turning |
| Head Length (mm) | 16.00 |
| Back of Bar to Cutting Edge (mm) | 10.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Insert Thickness | 2.38 |
| Insert Inscribed Circle (mm) | 6.35 |
