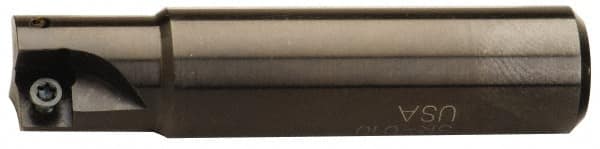

Cutting Tool Technologies - 1-1/4" Cut Diam, 0.37" Max Depth of Cut, 3/4" Shank Diam, 3" OAL, Indexable Square Shoulder End Mill - SNMC 333B Inserts, Weldon Shank, Through Coolant
Item #: 73156945
Brand: Cutting Tool Technologies
Model #: SR-040-C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.0000 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3700 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | SR |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | Yes |
| Insert Compatibility | SNMC 333B |
| Shank Length (Decimal Inch) | 2.0000 |
