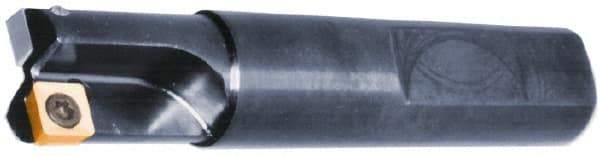

Cutting Tool Technologies - 3/4" Cut Diam, 0.28" Max Depth of Cut, 3/4" Shank Diam, 3.03" OAL, Indexable Square Shoulder End Mill - SPEH 2.522 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 73156861
Brand: Cutting Tool Technologies
Model #: HS-040-C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.0300 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HS |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | Yes |
| Insert Compatibility | SPEH 2.522 |
| Toolholder Material | Steel |
