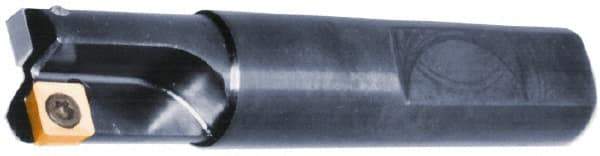

Cutting Tool Technologies - 5/8" Cut Diam, 0.22" Max Depth of Cut, 5/8" Shank Diam, 3.12" OAL, Indexable Square Shoulder End Mill - SPEH 222 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 73156853
Brand: Cutting Tool Technologies
Model #: HS-030-C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 3.1200 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2200 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HS |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 0.8700 |
| Weldon Flat | Yes |
| Insert Compatibility | SPEH 222 |
| Toolholder Material | Steel |
