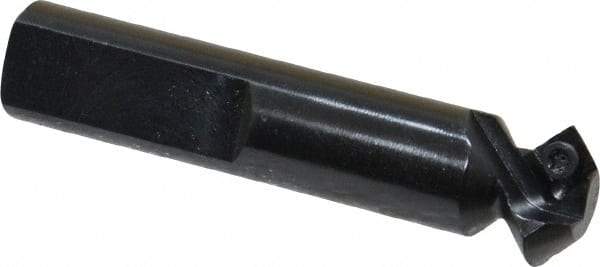

Cutting Tool Technologies - 45° Lead Angle, 5/8" Max Cut Diam, 0.34" Min Cut Diam, 0.15" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 1 Insert, SDEB 21.51 Insert Style, 2-1/2" Overall Length, Straight Shank
Item #: 73119554
Brand: Cutting Tool Technologies
Model #: ANG-010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.3400 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 2.5000 |
| Insert Style | SDEB 21.51 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Toolholder Style | ANG |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 0.4700 |
| Weldon Flat | Yes |
| Axial Rake Angle | 15 |
| Shank Length (Decimal Inch) | 2.1800 |
