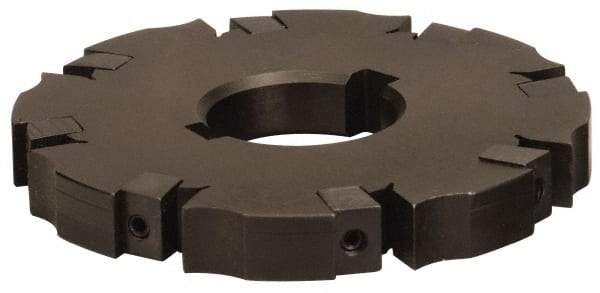

APT - Arbor Hole Connection, 3/8" Cutting Width, 3-9/16" Depth of Cut, 10" Cutter Diam, 2" Hole Diam, 20 Tooth Indexable Slotting Cutter - SM10 Toolholder, CTA 2 Insert, Neutral Cutting Direction
Item #: 73020380
Brand: APT
Model #: SM102022
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3750 |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 3.5620 |
| Cutter Diameter (Decimal Inch) | 10.0000 |
| Cutter Diameter (Inch) | 10 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 20 |
| Toolholder Style | SM10 |
| Series | Slot Master |
| Insert Style | CTA 2 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 20 |
| Cutting Direction | Neutral |
| Insert Holding Method | Wedge |
| Minimum Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Cutting Width (Decimal Inch) | 0.5300 |
| Radius | No |
| Rake | Positive |
| Cutter Body Width (Decimal Inch) | 0.3300 |
| Complete Insert Compatibility1 | CTA-2 |
