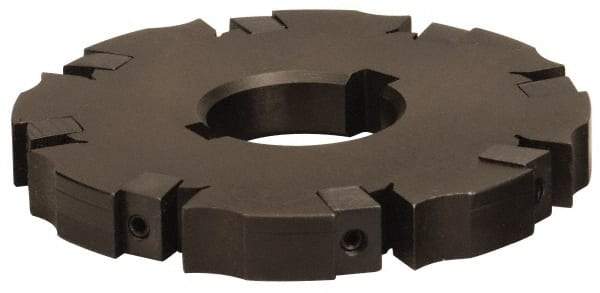

APT - Arbor Hole Connection, 0.72" Cutting Width, 2-1/16" Depth of Cut, 6" Cutter Diam, 1-1/4" Hole Diam, 12 Tooth Indexable Slotting Cutter - SM61 Toolholder, CTA 6 Insert, Neutral Cutting Direction
Item #: 73020109
Brand: APT
Model #: SM612126
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.7200 |
| Maximum Depth of Cut (Decimal Inch) | 2.0620 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 12 |
| Toolholder Style | SM61 |
| Series | Slot Master |
| Insert Style | CTA 6 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Neutral |
| Insert Holding Method | Wedge |
| Minimum Cutting Width (Decimal Inch) | 0.7200 |
| Maximum Cutting Width (Decimal Inch) | 1.0250 |
| Radius | No |
| Rake | Positive |
| Cutter Body Width (Decimal Inch) | 0.6900 |
| Complete Insert Compatibility1 | CTA-6 |
