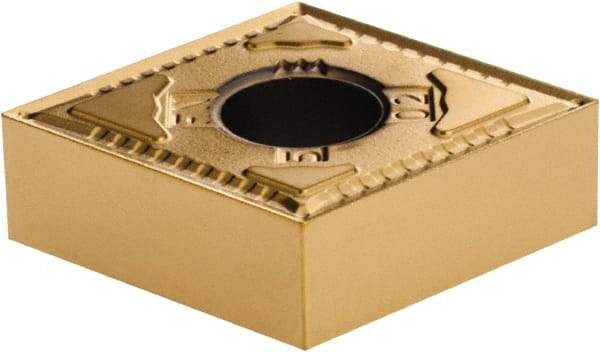

Kennametal - CNMG430.5 FN Grade KT315 Cermet Turning Insert - TiN/TiCN/TiN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 0.0079" Corner Radius
Item #: 73011454
Brand: Kennametal
Model #: 1926594
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 430.5 |
| Material | Cermet |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5079 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KT315 |
| Coating | TiN/TiCN/TiN |
| Material Grade | C3/C7 |
| Chip Breaker | FN |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Series | KENLOC |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
